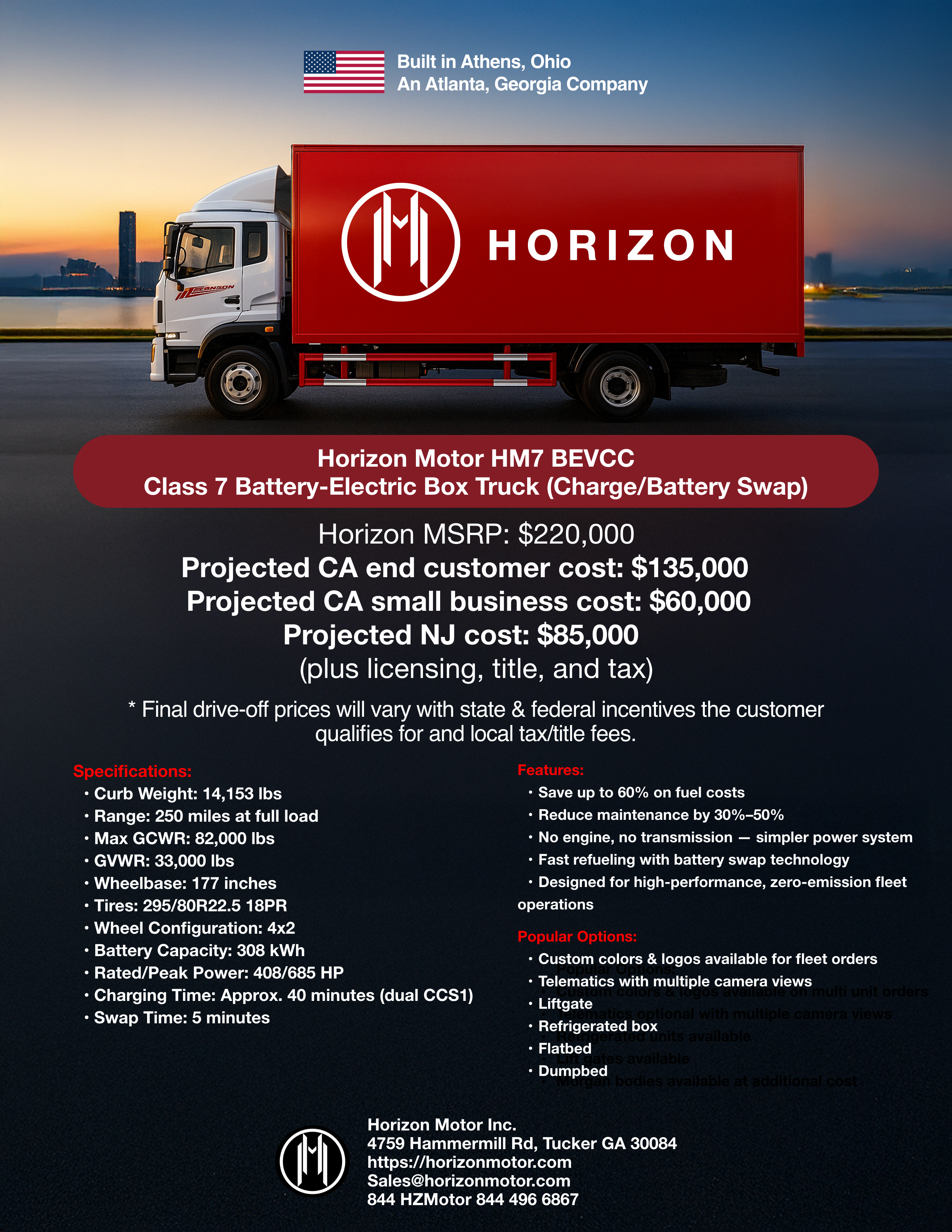

Horizon MSRP: $220,000
Projected CA end customer cost: $135,000
Projected CA small business cost: $60,000
Projected NJ cost: $85,000
Projected NJ small business cost: $51,250
Projected NY cost: $35,000
Projected other State cost: $ 220,000
(plus licensing, title, and tax)
* Final drive-off prices will vary with state & federal incentives the customer qualifies for and local tax/title fees.
Horizon GVWR (lbs): 33,000
Curb weight, front axle (lbs): 8,046.87
Curb weight, rear axles (lbs): 6,106.81
Curb weight (lbs): 16,760.00
Max payload (lbs): 16,240.00
Max front axle load (lbs): 11,023.11
Axle spacing (in): 177.17
Length (ft): 26'6''
Width (ft): 9'3''
Height, truck height 1 (ft): 10'10''
Wheelbase, front to rearmost axle (ft): 14.76
Cab width excluding mirrors (ft): 7.71
Front bumper to front suspension (ft): 4.63
Cab to axle, CA (in): 55.51
Cab to end of frame (in): 224.21
Top of cab to top of frame (ft): 6.61
Approach angle (degrees): 18.00
Departure angle (degrees): 12.00
Frame height (in): 9.84
Motor peak power (HP): 221.27 kW
Motor rated speed (RPM): 2000 r/min
Motor peak speed (RPM): 4000 r/min
HV battery chemistry: Lithium Iron Phosphate
HV battery capacity, low (kWh):
HV battery capacity, high (kWh): 196.08
HV battery charge/discharge rate (C): 0.80
HV battery voltage and range (V): 566.72
HV battery rated output (A): 346.00
HV battery config or mounting:
HV battery Level 2 (AC) charging max rate (kW):
HV battery Level 3 (DC) charging max rate (kW): 120.00
HV battery 100% charge time to charge (min): 1-1.5h
HV battery weight (lbs): 2,822.00
HV battery warranty (years): 5.00
HV battery warranty (miles): 124,274.00
Range, low, 15 °F (miles):
Range, low (miles): 173.98
Range, high (miles): 261.00
Top speed (mph): 70
Maximum grade (%): 30
Horizon MSRP: $270,000
Projected CA end customer cost: $185,000
Projected CA small business cost: $110,000
Projected NJ cost: $135,000
Projected NJ small business cost: $101,250
Projected NY cost: $85,000
Projected NY small business cost: $48,000
Projected other State cost: $ 270,000
(plus licensing, title, and tax)
* Final drive-off prices will vary with state & federal incentives the customer qualifies for and local tax/title fees.
Horizon GVWR (lbs): 33,000
Curb weight, front axle (lbs):
Curb weight, rear axles (lbs):
Curb weight (lbs): 18,410.00
Max payload (lbs): 14,590.00
Max front axle load (lbs):
Axle spacing (in):
Length (ft):
Width (ft):
Height, truck height 1 (ft):
Wheelbase, front to rearmost axle (ft): 19.69
Cab width excluding mirrors (ft): 6.89
Front bumper to front suspension (ft):
Cab to axle, CA (in):
Cab to end of frame (in):
Top of cab to top of frame (ft):
Approach angle (degrees):
Departure angle (degrees):
Frame height (in):
Motor peak power (HP): 281.62 kW
Motor rated speed (RPM): 2100 r/min
Motor peak speed (RPM): 4500 r/min
HV battery chemistry: Lithium Iron Phosphate
HV battery capacity, low (kWh): 301.60
HV battery capacity, high (kWh): 301.60
HV battery charge/discharge rate (C): 1.00
HV battery voltage and range (V): 614.40
HV battery rated output (A): 245.50
HV battery config or mounting: middle
HV battery Level 2 (AC) charging max rate (kW):
HV battery Level 3 (DC) charging max rate (kW): 120.00
HV battery 100% charge time to charge (min): 20%-80% (50min)
HV battery weight (lbs): 2,094.39
HV battery warranty (years): 8.00
HV battery warranty (miles): 248,548.48
• 100% All-Electric
• Up to 60% Fuel Savings
• 30-50% Lower Maintenance Costs
• Flexible Charging: containerized charging option + 5-min battery swap
• Custom paint color & logo branding
• Battery size selection
• Telematics package with multi-camera views
• Other configurations are available at additional cost
