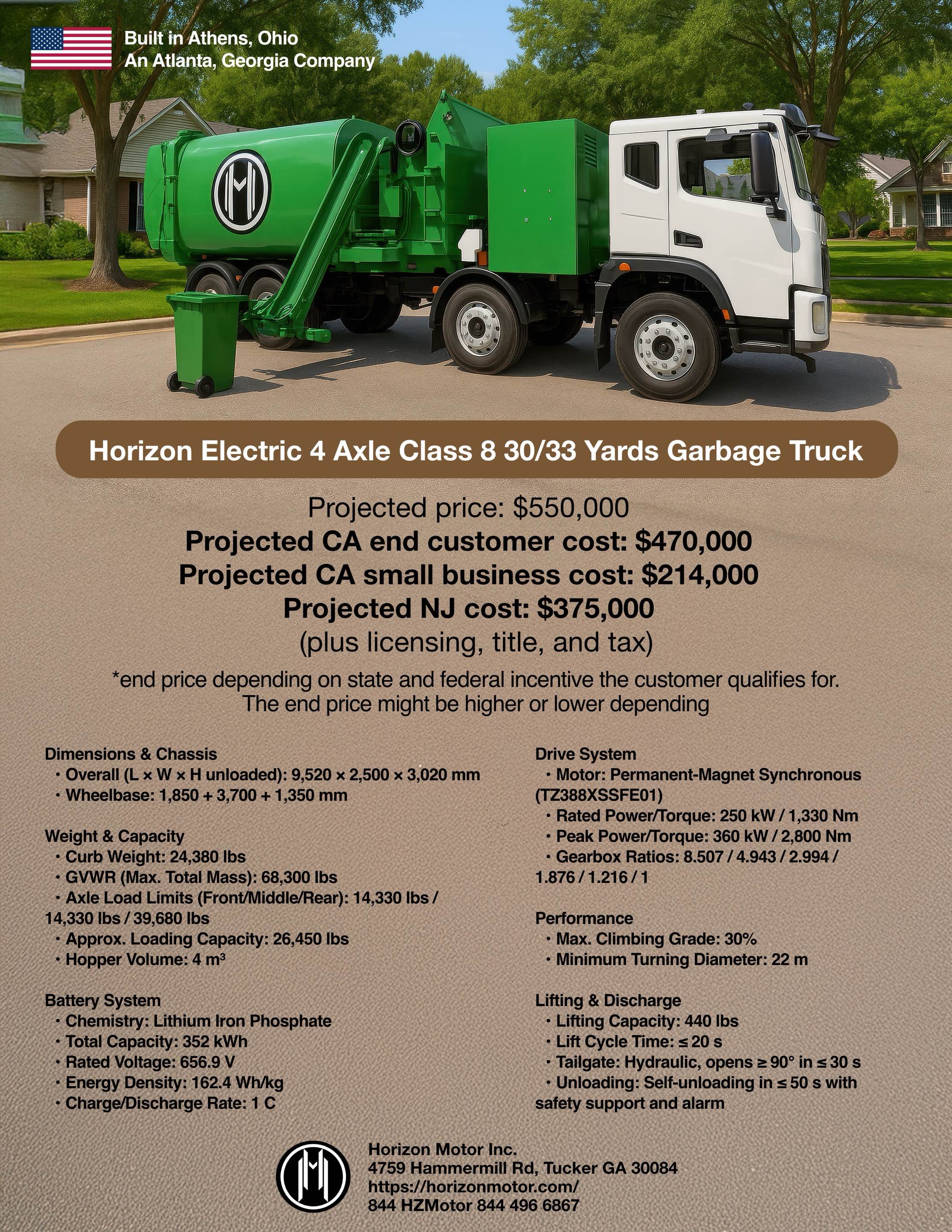

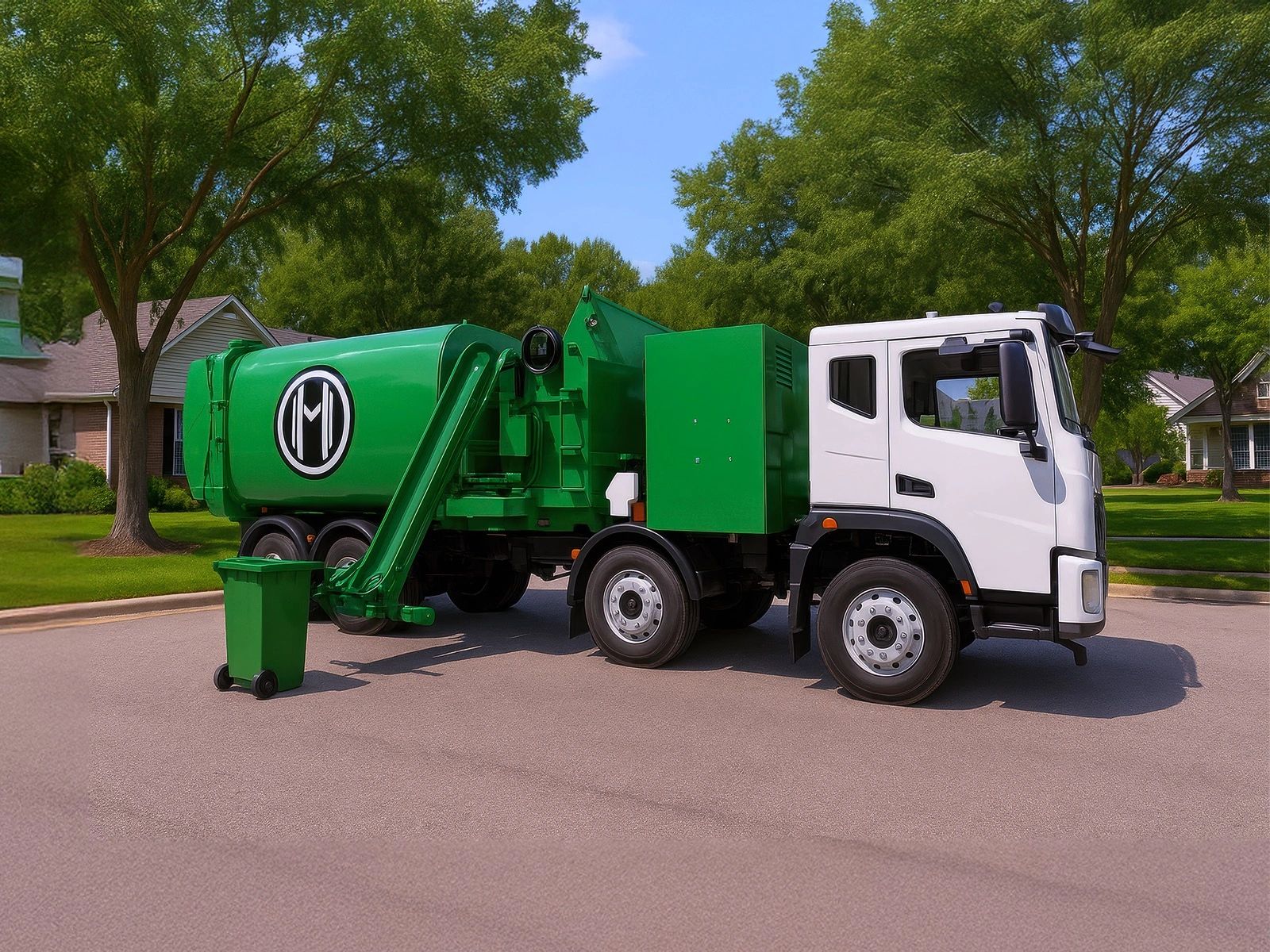

Horizon Electric 4 Axle Class 8 30/33 Yards Garbage Truck

• Overall (L × W × H unloaded): 9,520 x 2,500 x 3,020 mm
• Wheelbase: 1,850 + 3,700 + 1,350 mm

• Curb Weight: 24,380 lbs
• Gearbox Ratios: 8.507 / 4.943 / 2.994 /
• GWR (Max. Total Mass): 68,300 lbs
• Axle Load Limits (Front/Middle/Rear):14,330 lbs /14,330 lbs / 39,680 lbs
• Approx. Loading Capacity: 26,450 lbs
• Hopper Volume: 4 m3

• Chemistry: Lithium Iron Phosphate
• Total Capacity: 352 kWh
• Rated Voltage: 656.9 V
• Energy Density: 162.4 Wh/kg
• Charge/Discharge Rate: 1 C

• Motor: Permanent-Magnet Synchronous (TZ388XSSFE01)
• Rated Power/Torque: 250 kW / 1,330 Nm
• Peak Power/Torque: 360 kW / 2,800 Nm
• • Gearbox Ratios: 8.507 / 4.943 / 2.994 /1.876 / 1.216 / 1

• Max. Climbing Grade: 30%
• Minimum Turning Diameter: 22 m

• Lifting Capacity: 440 lbs
• Lift Cycle Time: ≤ 20 s
• Tailgate: Hydraulic, opens ≥ 90° in ≤ 30 s
• Unloading: Self-unloading in ≤ 50 s with safety support and alarm

• Estimated annual savings: $27,000

• Estimated annual savings: $17,000
