FEATURE OF HORIZON MOTOR EV VEHICLE

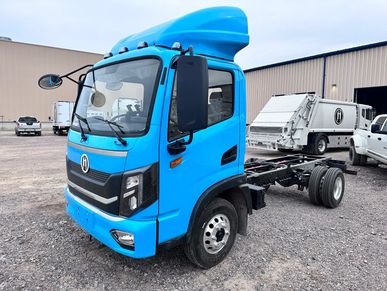

CAB AND CHASSIS TRUCK
CAB AND CHASSIS TRUCK
CAB AND CHASSIS TRUCK

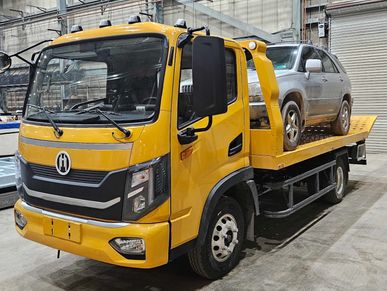

TOWING TRUCK
CAB AND CHASSIS TRUCK
CAB AND CHASSIS TRUCK

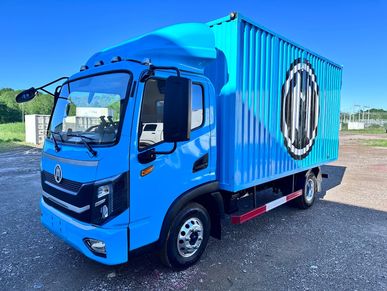

Dry Base Box Truck
CAB AND CHASSIS TRUCK
Dry Base Box Truck

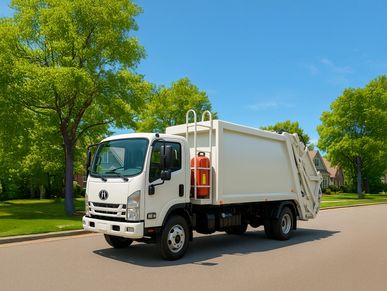

GARBAGE TRUCK
GARBAGE TRUCK
Dry Base Box Truck

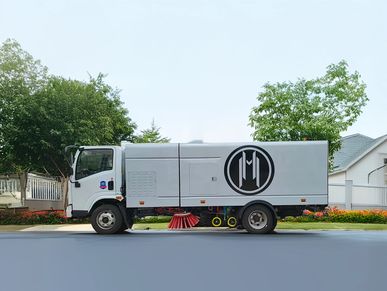

SWEEPER TRUCK
GARBAGE TRUCK
SWEEPER TRUCK
HM3 BEV
HM4 BEV
HM5 BEV
HM6 BEV
HM7 BEV
HM8 BEV
CLASS 8: 513 kwh battery Rear load garbage truck
• Rear hydraulic dump arm
• Dump 2 bins effortlessly
• Double compression for more capacity
• High capacity wastewater tank
• Self-cleaning hopper
• 20 kW DC fast charger included
✅ Save 60% on fuel costs
• Estimated annual savings: $27,000
✅ Save 30% to 50% on maintenance costs
• Estimated annual savings: $17,000
✅ Total estimated annual savings: $44,000
Horizon Motor HM8 BEVG4 4-Axle 30/33 YD®
SIDE-LOADER BATTERY-ELECTRIC SIDE LOAD GARBAGE TRUCK
Class: 8
Dimensions & Chassis
- Overall (L x W x H, unloaded): 31 ft 3 in x 8 ft 2 in x 9 ft 11 in
- Wheelbase (segment 1 + 2 + 3): 6 ft 1 in + 12 ft 2 in + 4 ft 5 in
Weight
- Curb Weight: 24,380 lbs
- GVWR: 57,000 lb
Battery System
- Chemistry: Lithium Iron Phosphate (LFP)
- Total Capacity: 352 kWh
- Rated Voltage: ~657 V
- Energy Density: ≈74 Wh/lb
Performance
- Max. Climbing Grade: 30%
- Minimum Turning Diameter: ≈72 ft
Refuse Body & Hydraulics
- Hopper Volume: ≈ 5.2 cu yd
- Lift Capacity: 440 lb
- Lift Cycle Time: ≤ 20 s
- Tailgate Opening 90 °: ≤ 30 s
- Full Unload Cycle: ≤ 50 s
